AD9411 is a 10-bit, 170/200 MSPS, 3.3 V A/D converter with excellent linearity, high SNR and ENOB, and multiple output formats.

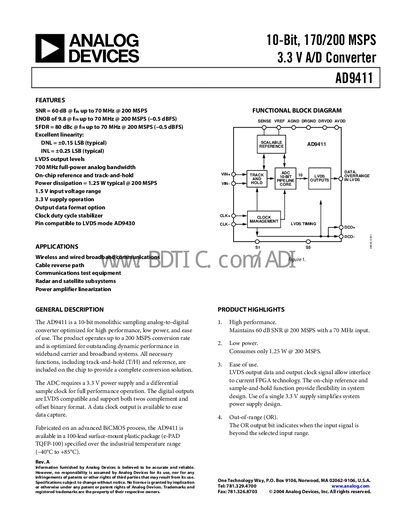

The AD9411 is a 10‑bit monolithic sampling analog‑to‑digital converter optimized for high performance, low power, and ease of use. It operates up to 200 MSPS conversion rate and includes on‑chip reference and track‑and‑hold functions, requiring only a 3.3 V supply.
The document lists detailed DC, AC, digital and switching specifications, absolute maximum ratings, pin configuration, package dimensions, and ordering information. It also includes performance highlights such as 60 dB SNR at 200 MSPS, 1.25 W typical power dissipation, and LVDS‑compatible digital outputs.
| Resolution | 10 bits |
|---|---|
| Maximum Sample Rate | 200 MSPS |
| Effective Number of Bits (ENOB) | 9.8 bits @ 70 MHz, 200 MSPS |
| Power Dissipation | 1.25 W typical @ 200 MSPS |
| Supply Voltage | 3.3 V (AVDD and DRVDD) |
| Full‑Scale Input Voltage | 1.536 V |
| Operating Temperature Range | -40 °C to +85 °C |
| Output Interface | LVDS compatible digital outputs |
| Package | 100‑lead TQFP EP (e‑PAD SV‑100) |
The AD9411 can convert at up to 200 MSPS (170 MSPS for the -170 version).
It requires a 3.3 V supply for both AVDD and DRVDD pins.
Typical power dissipation is 1.25 W when operating at 200 MSPS.
The device provides LVDS‑compatible digital outputs that can be configured for two’s complement or offset binary format.
