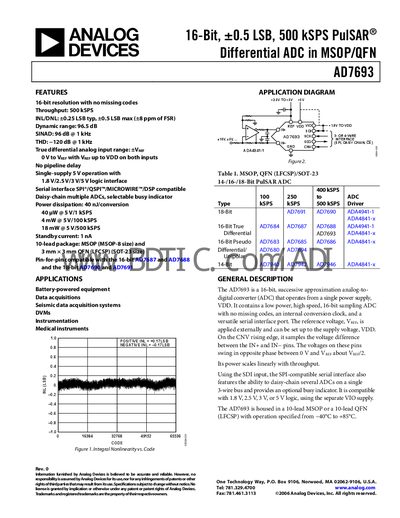

AD7693 is a 16-bit, ±0.5 LSB, 500 kSPS PulSAR Differential ADC in MSOP/QFN package.
The AD7693 is a 16‑bit successive‑approximation ADC offering up to 500 kSPS throughput, no missing codes, and a dynamic range of 96.5 dB. It operates from a single 5 V supply, supports 1.8 V‑5 V logic levels, and provides a serial SPI/QSPI/MICROWIRE interface with optional daisy‑chain and busy‑indicator features.
The device is offered in 10‑lead MSOP and 10‑lead QFN (LFCSP) packages, rated for –40 °C to +85 °C operation. Detailed specifications cover resolution, input range, power dissipation, timing parameters, absolute maximum ratings, and recommended PCB layout guidelines to separate analog and digital sections.
| Maximum Throughput | 500 kSPS |
|---|---|
| Power Dissipation (5 V, 100 kSPS) | 4 mW |
| Power Dissipation (5 V, 500 kSPS) | 18 mW |
| Standby Current | 1 nA |
| Supply Voltage (VDD) | 4.5 V to 5.5 V |
| Input Voltage Range (Differential) | ±Vref (up to VDD) |
| Dynamic Range | 96.5 dB |
| Integral Nonlinearity (INL) Typical | ±0.25 LSB |
The AD7693 can convert at up to 500 kSPS.
At 5 V and 500 kSPS the device dissipates about 18 mW.
The AD7693 is offered in a 10‑lead MSOP (RM‑10) and a 10‑lead QFN (LFCSP) package.
The standby current is specified as 1 nA.
