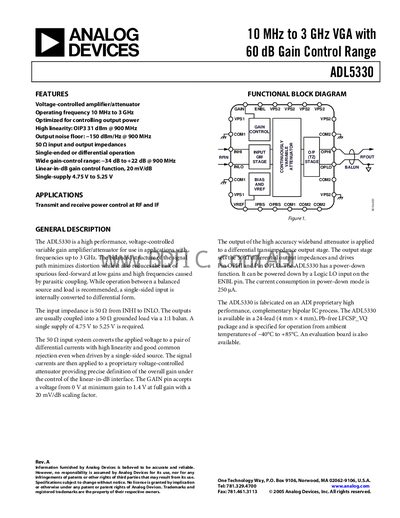

The ADL5330 is a high performance 10 MHz to 3 GHz voltage-controlled amplifier/attenuator that provides a wide gain-control range of ±34 dB to +22 dB. The device features 50 Ω input and output impedances, single-ended or differential operation, and is suitable for use in RF and IF transmit and receive power control applications.
The ADL5330 is a high‑performance voltage‑controlled variable gain amplifier/attenuator covering 10 MHz to 3 GHz. It provides a wide gain‑control range of up to 60 dB, linear‑in‑dB gain control (20 mV/dB), and supports both single‑ended and differential operation.
The device is supplied from a single 4.75 V‑5.25 V rail, draws only 250 µA in power‑down, and is offered in a 24‑lead 4 mm × 4 mm Pb‑free LFCSP_VQ package that operates from –40 °C to +85 °C. An evaluation board and ordering guide are included.
| Usable Frequency Range | 0.01 – 3 GHz |
|---|---|
| Gain Control Span (900 MHz) | 53 dB |
| Maximum Gain (900 MHz) | 21 dB |
| Minimum Gain (900 MHz) | ‑32 dB |
| Gain Control Slope | 19.7 mV/dB |
| Supply Voltage Range | 4.75 V – 5.25 V |
| Operating Temperature Range | ‑40 °C – +85 °C |
The device operates from a single supply of 4.75 V to 5.25 V.
The GAIN pin accepts a voltage from 0 V to 1.4 V.
It is available in a 24‑lead 4 mm × 4 mm Pb‑free LFCSP_VQ (waffle‑pack) package.
