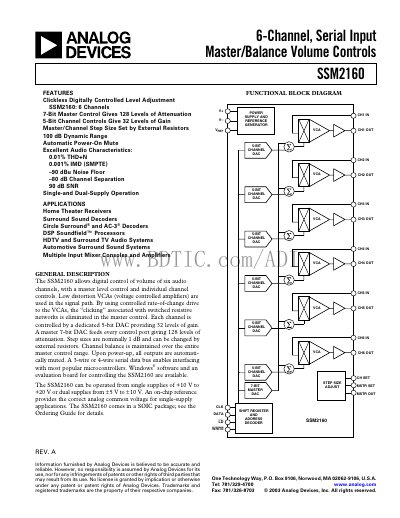

The SSM2160 provides click‑less, digitally controlled level adjustment for six audio channels with a master control and individual channel controls. It uses low‑distortion VCAs and 7‑bit/5‑bit DACs to give 128 steps of attenuation and 32 steps of gain per channel, respectively. The device can be interfaced via a 3‑wire or 4‑wire serial bus and is supplied in a 24‑lead SOIC package.
The chip operates from single supplies of +10 V to +20 V or dual supplies of +5 V to +10 V, offers a 100 dB dynamic range, -90 dBu noise floor, and 80 dB channel separation. It is intended for home‑theater receivers, surround‑sound decoders, automotive sound systems, and multichannel mixers.
| Maximum Input Level | 1.8 V rms |
|---|---|
| Input Impedance | 10 kΩ |
| Output Impedance | 10 Ω |
| Offset Voltage | 20 mV |
| Supply Voltage (single) | 10 V to 20 V |
| Supply Voltage (dual) | +5 V to +10 V |
| Supply Current (no load) | 20–28 mA |
The SSM2160 provides volume control for six audio channels.
It can be operated from single supplies of +10 V to +20 V or dual supplies of +5 V to +10 V.
When muted, the attenuation is -95 dB.
