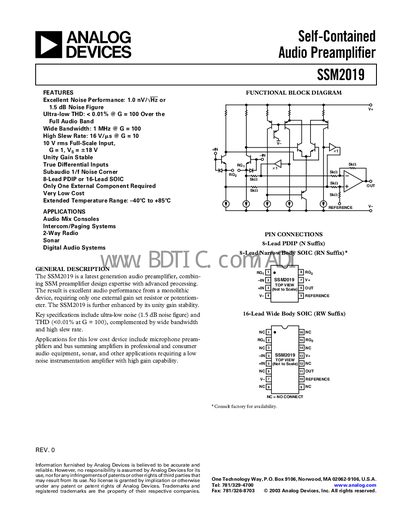

The SSM2019 is a latest generation audio preamplifier, combining SSM preamplifier design expertise with advanced processing.
The SSM2019 is a self‑contained audio preamplifier designed for microphone, intercom, paging, two‑way radio, sonar and digital audio applications. It offers excellent noise performance, ultra‑low distortion, and a wide 1 MHz bandwidth at a gain of 100, while remaining inexpensive and available in PDIP or SOIC packages.
Key features include a typical voltage noise density of 1 nV/√Hz, THD+N below 0.01 % at high gain, a slew rate of 16 V/ps, and a maximum gain of 70 dB. The device operates from a supply voltage range of 4.5 V to +18 V and provides true differential inputs with optional phantom powering for microphones.
| Noise Density (typical) | 1.0 nV/√Hz |
|---|---|
| Total Harmonic Distortion + Noise (THD+N) at G=100 | < 0.01 % |
| Bandwidth at G=100 | 1 MHz |
| Slew Rate | 16 V/ps @ G=10 |
| Supply Voltage Range | 4.5 V to +18 V |
| Input Offset Voltage | 0.05 mV (typ) – 0.25 mV (max) |
| Maximum Gain | 70 dB |
The typical voltage noise density is 1.0 nV/√Hz at 1 kHz.
The device operates from 4.5 V up to +18 V.
The maximum gain is 70 dB.
