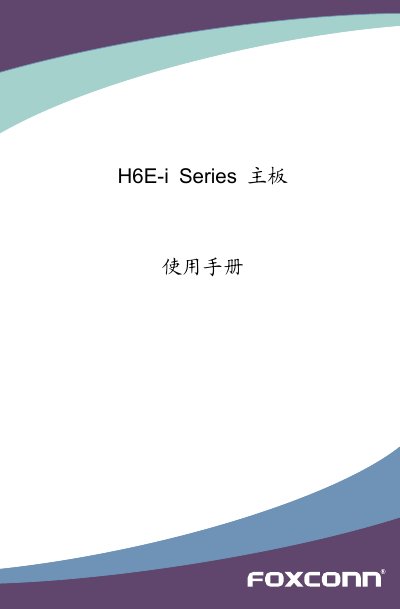

The H6E-i Series motherboard is an electronic information product that has a specified period of environmental use and controls on toxic and hazardous substances. The motherboard includes various components and connectors, and also complies with relevant electromagnetic compatibility standards.
This manual covers the H6E-i series motherboard, detailing its hardware layout, backplane ports, and supported components. It includes product specifications, safety notices, and environmental compliance information.
The guide walks users through CPU, memory, and expansion card installation, BIOS setup, and software utilities such as FOX LiveUpdate, FOX LOGO, and FOX DMI. Troubleshooting tips and contact information are also provided. This manual is written in Chinese.
| CPU Socket | LGA1156, Intel CPUs up to 95W |
|---|---|
| Memory | 4 x DDR3 DIMM, up to 16GB, 1600/1333/1066 MHz |
| Chipset | Intel H55 |
| Expansion Slots | 1 × PCI Express x16, 3 × PCI Express x1, 3 × PCI |
| Storage Interfaces | 6 × SATAII, 2 × eSATA |
| Network | Realtek RTL8111DL Gigabit Ethernet |
| Audio | VIA VT1828 High‑Definition Audio |
| USB Ports | 12 × USB 2.0 (6 rear, 6 via internal headers) |
| Form Factor | ATX, 30.5 cm × 21.9 cm |
It uses an LGA1156 socket for Intel CPUs with a maximum power consumption of 95 W.
The board provides twelve USB 2.0 ports – six on the rear panel and six via internal headers.
It supports up to 16 GB of DDR3 memory across four 240‑pin DIMM slots.
The motherboard includes six SATA II connectors and two eSATA connectors.
