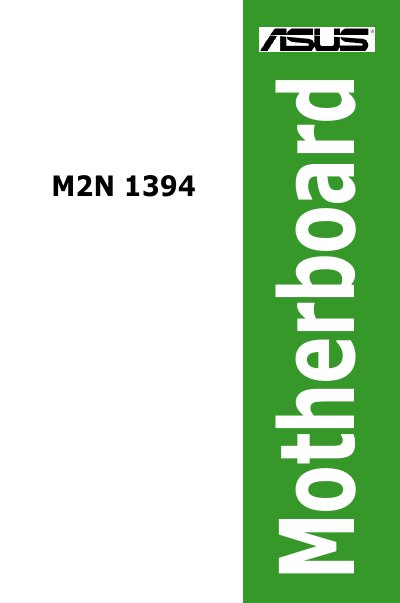

This manual introduces the features and usage of the M2N 1394 ii motherboard.
This manual introduces the ASUS M2N 1394 motherboard, detailing its layout, supported CPUs, memory architecture, expansion slots, and integrated peripherals. It also covers safety precautions for handling and installing the board.
The guide walks users through BIOS configuration, utility tools, RAID driver creation, and operating‑system installation, while providing FCC and Canadian compliance notices.
| Chipset | NVIDIA MCP 65S |
|---|---|
| Front Side Bus | 2000/1600 MT/s |
| Expansion slots | 1 PCI‑E x16, 2 PCI‑E x1, 3 PCI |
| Serial ATA ports | 4 × 3 Gb/s SATA connectors |
| RAID support | RAID 0, 1, 0+1, 5, JBOD |
| Audio codec | SoundMAX ADI AD1988A 6‑channel |
| LAN controller | PCI‑E Gigabit Ethernet |
| USB ports | Up to 10 USB 2.0/1.1 ports |
Insert the motherboard support CD, select the Make Disk tab, choose the RAID driver disk, and follow the on‑screen instructions to write it to a floppy.
Disconnect the power cable from the electrical outlet before relocating the system.
It supports AMD socket AM2 processors such as AMD Athlon 64, Athlon FX, Athlon X2, and Sempron.
