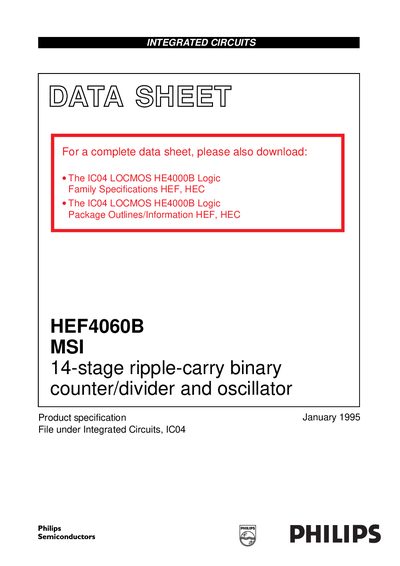

The HEF4060B is a 14‑stage ripple‑carry binary counter/divider and oscillator with three oscillator terminals (RS, Rte, Cre) and ten buffered outputs. It supports both RC and crystal oscillator configurations, and the oscillator can be replaced by an external clock signal at the RS input.
Key electrical characteristics include typical propagation delays of about 183 ns, input transition times under 20 ns, and maximum clock frequencies up to 8 MHz. The device is offered in three 16‑lead packages: plastic DIL (SOT38‑1), ceramic DIL (SOT74), and plastic SO (SOT109‑1).
| Number of stages | 14 |
|---|---|
| Oscillator terminals | RS, Rte, Cre |
| Buffered outputs | 10 |
| Typical propagation delay | 183 ns |
| Input transition time | < 20 ns |
| Dynamic power dissipation (typical) | 700 µW per package |
The oscillator can be used as an RC oscillator or a crystal oscillator, and it may be replaced by an external clock signal at the RS input.
Typical propagation delay is about 183 ns, depending on load capacitance.
