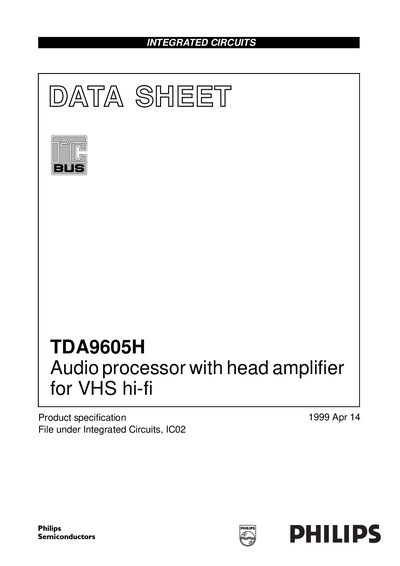

TDA9605H is a Philips audio processor with a head amplifier for VHS hi-fi audio.
The TDA9605H is a single‑chip audio processor with an integrated head amplifier designed for VHS hi‑fi stereo systems in video recorders. It provides programmable recording and playback amplification, automatic calibration, and multiple input/output selection functions.
The document includes sections on features, general description, ordering information, block diagram, pinning, functional description, 2‑C‑BUS protocol, limiting values, thermal characteristics, and application notes, as well as full contact and legal information for Philips Semiconductors.
| Package type | QFP44 plastic quad flat package |
|---|---|
| Number of pins | 44 leads |
| Lead length | 1.3 mm |
| Body dimensions | 10 x 10 x 1.75 mm |
It is an audio processor with head amplifier for VHS hi‑fi stereo systems in video recorders.
The device is supplied in a QFP44 plastic quad flat package with 44 leads.
