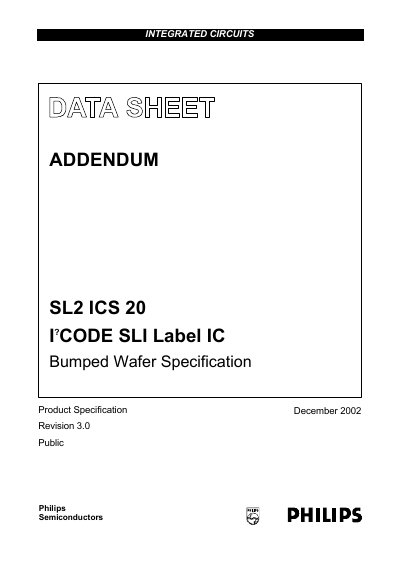

This specification describes the electrical, physical and dimensional properties of Au-bumped sawn wafers on FFC of I•CODE 1 SLI Label ICs on a Philips C075EE process and is the base for delivery of tested I•CODE SLI Label ICs.
The HEF4060B is a 14‑stage ripple‑carry binary counter/divider with an integrated oscillator. It features three oscillator terminals (RS, Rte, Cre), ten buffered outputs (O03‑O13) and an asynchronous master‑reset input (MR). The device can be used with RC, crystal or external clock configurations.
The datasheet lists electrical characteristics such as propagation delays, maximum clock frequency (8 MHz), supply voltage range (5‑15 V) and package options (16‑lead DIL, SO). Detailed pin‑out diagrams, timing component limitations and typical oscillator formulas are also provided.
| Number of stages | 14 |
|---|---|
| Oscillator terminals | RS, Rte, Cre |
| Master reset input | MR (asynchronous) |
The HEF4060B can be configured as an RC oscillator, a crystal oscillator, or it can accept an external clock signal applied to the RS pin.
