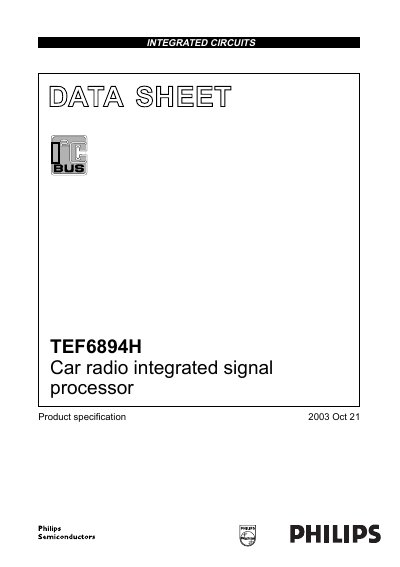

Philips TEF6894H Car Radio Integrated Signal Processor Datasheet

This document is a product specification for TEF6894H. It includes the features, characteristics and use of the product.

Brand: Philips
Category: INTEGRATED CIRCUITS
Document type: Datasheet
Language: English
Pages: 55
File format: PDF
File size: 314 KB
Published: 22 March, 2012
Updated: 30 September, 2023
MD5 checksum: CFE90D78A5513A07A81EBB762E6C8FA3
PDF: Philips TEF6894H Car Radio Integrated Signal Processor Datasheet PDF

About this manual

The TEF6894H is a monolithic BiMOS integrated circuit that combines a stereo decoder, weak‑signal processing, noise blanking, input selection and tone/volume control for car radio applications. It operates from a supply voltage of 8 V to 9 V and communicates via a fast‑mode I²C bus.

The datasheet provides detailed functional descriptions, pin assignments, electrical characteristics, package information (QFP44, 44‑lead), and recommended soldering methods for surface‑mount assembly.

What's inside

Features
General Description
Ordering Information
Quick Reference Data
Block Diagram
Pinning
Functional Description
I2C‑Bus Protocol
Package Outline
Soldering

Specifications

Supply voltage (VCC)	8.0 V – 9.0 V
Supply current (normal mode)	24 mA
Supply current (standby)	15 mA
Volume/balance gain range	+20 dB to –79 dB
I²C bus speed	Fast mode 400 kHz

Frequently asked questions

What is the supply voltage range for the TEF6894H?

The device operates from 8.0 V to 9.0 V.

How many inputs can the tone/volume part select?

Four inputs: two external stereo (CD, TAPE), one mono (PHONE), and one internal stereo (AM or FM).

What is the I²C bus speed supported by the TEF6894H?

The chip supports fast‑mode I²C at 400 kHz.
