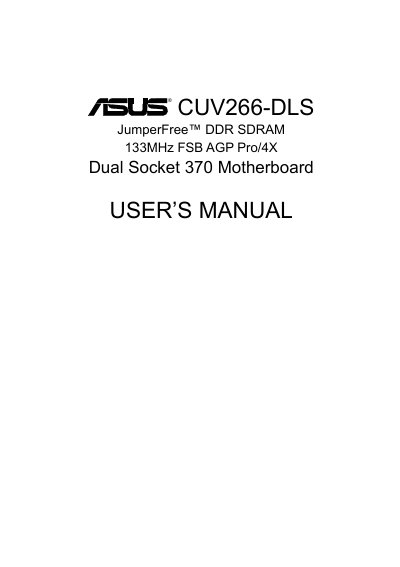

ASUS CUV266-DLS User Manual

This is a user manual for the CUV266-DLS motherboard, which introduces the functions and usage of the motherboard

Brand: ASUS
Category: Other device
Document type: User Manual
Language: English
Pages: 92
File format: PDF
File size: 3.3 MB
Published: 22 March, 2012
Updated: 30 September, 2023
Model: CUV266
MD5 checksum: B88B447987CC2A5F72CA9F07CC99E719
PDF: ASUS CUV266-DLS User Manual PDF

About this manual

This manual covers the ASUS CUV266-DLS motherboard, a dual Socket 370 board designed for home PCs, workstations, and servers. It includes detailed sections on hardware setup, BIOS configuration, and software installation.

The document also lists specifications such as supported processors, memory capacity, chipset details, and peripheral interfaces, along with safety and FCC compliance information.

What's inside

INTRODUCTION
FEATURES
HARDWARE SETUP
BIOS SETUP
SOFTWARE SETUP
SOFTWARE REFERENCE
APPENDIX
INDEX

Specifications

Supported Processors	Intel Pentium III 133MHz and 100MHz FSB Coppermine core FC-PGA
North Bridge Chipset	VIA VT8633 supporting AGP Pro/4X/2X, 133/100MHz FSB
South Bridge Chipset	VIA VT8233 integrated peripheral controller
LAN Controller	Intel 82559 Fast Ethernet
SCSI Controller	Adaptec 7899 Ultra 160 36‑bit dual‑channel
USB Ports	Six USB ports via three root hubs

Frequently asked questions

What processors are supported by the CUV266-DLS motherboard?

It supports Intel Pentium III 133 MHz and 100 MHz FSB Coppermine core FC‑PGA processors.

Which LAN controller is used on this board?

It uses an Intel 82559 Fast Ethernet LAN controller.

Does the motherboard include a SCSI controller?

Yes, it includes an Adaptec 7899 Ultra 160 36‑bit dual‑channel SCSI controller.
