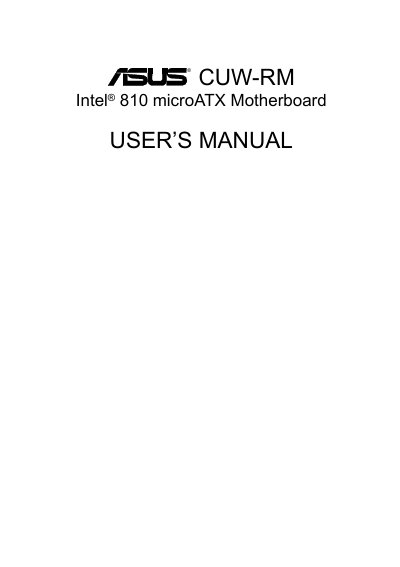

This is a user manual for the ASUS CUW-RM motherboard. It introduces the features and characteristics of the motherboard.
This manual covers everything needed to install and configure the ASUS CUW‑RM motherboard, including hardware setup, BIOS configuration, and software installation. It also contains reference material for the bundled drivers and utilities.
The document includes safety and regulatory information, a detailed parts checklist, and troubleshooting guidance, helping users get the most out of their system.
| Supported processors | Intel Pentium 100 MHz FSB, Intel Celeron 66 MHz FSB |
|---|---|
| Chipset | Intel 810 chipset with 100/66 MHz FSB |
| PCI slots | Three 32‑bit PCI (rev 2.2) expansion slots |
| Integrated IDE | UltraDMA/66 up to 66 MB/s, UltraDMA/33 up to 33 MB/s |
| Serial/parallel ports | Two high‑speed UART serial ports and one parallel port with EPP/ECP |
| Wake‑On‑LAN support | Wake‑On‑LAN, Wake‑On‑Ring, Keyboard Wake‑Up, BIOS Wake‑Up |
| Audio Modem Riser (AMR) slot | Supports audio and/or modem riser cards |
| JumperFree™ mode | Enables BIOS‑based overclocking without physical jumpers |
The board supports Intel Pentium processors with a 100 MHz front‑side bus and Intel Celeron processors with a 66 MHz front‑side bus.
The supported OS list includes DOS 6.xx, Windows 3.x/95/98, OS/2 Warp, Netware, and SCO UNIX.
