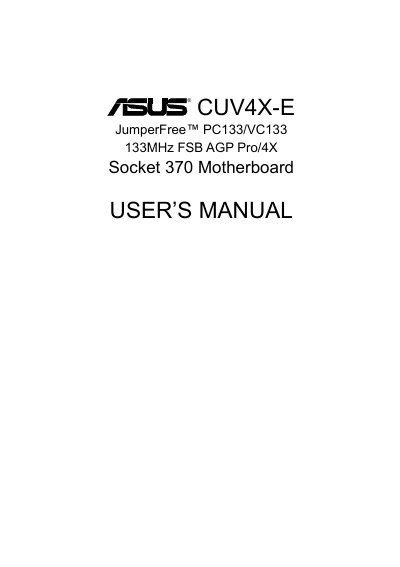

This is a user manual for ASUS CUV4X-E motherboard
This manual covers the ASUS CUV4X-E motherboard, a Socket 370 board featuring Intel Pentium II and Celeron processors, VIA chipsets, and extensive expansion options. It includes sections on hardware installation, BIOS configuration, and software setup, as well as regulatory compliance information.
The document provides detailed component locations, step‑by‑step installation procedures, and reference material for the included utilities, helping users assemble and configure the system safely and efficiently.
| Processor Support | Intel Pentium II 100/133 MHz (Coppermine core), Intel Celeron 66 MHz (Coppermine and Mendocino cores) |
|---|---|
| North Bridge Chipset | VIA VT82C694X system controller |
| South Bridge Chipset | VIA VT82C686B PCI set with Super I/O |
| Memory Capacity | Four DIMM sockets supporting up to 1.5 GB of PC133/VC133/HSDRAM |
It supports Intel Pentium II 100/133 MHz (Coppermine core) and Intel Celeron 66 MHz processors (both Coppermine and Mendocino cores).
The board has four DIMM sockets and can accommodate up to 1.5 GB of PC133, VC133, or HSDRAM modules.
Yes, the motherboard supports Wake‑On‑LAN via a dedicated connector or an optional Ethernet card.
