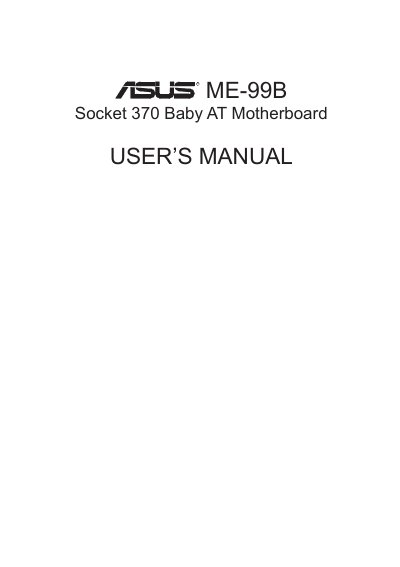

This manual is the user's manual for the ASUS ME-99B motherboard.
This manual covers everything needed to install and operate the ASUS ME-99B motherboard, including an introduction, feature overview, hardware setup, BIOS configuration, software installation, and reference material. It also contains safety, FCC, and Canadian compliance statements.
The document details the supported Intel Celeron processor, SiS AGP graphics, memory options, audio chipset, expansion slots, and optional modules such as TV‑Out, LCD, and IrDA. It guides users through wiring, jumper settings, and driver installation.
| Processor support | Intel Celeron (Socket 370, PPGA) |
|---|---|
| AGP graphics controller | SiS 620 with 6326 AGP 2X, 100 MHz FSB, UltraDMA/66 |
| Memory capacity | Up to 768 MB SDRAM across three DIMM sockets |
| Integrated VGA memory | Up to 8 MB SDRAM (optional dedicated) |
| Audio chipset | ESS Solo‑1 PCI audio chipset |
| Expansion slots | 4× PCI (32‑bit), 2× ISA (16‑bit) |
It supports Intel Celeron processors for Socket 370 in a Plastic Pin Grid Array (PPGA) package.
The board has three DIMM sockets and can accommodate up to 768 MB of PC100‑compatible SDRAM.
Yes, it has an integrated SiS AGP 2X graphics controller that can use shared system memory or up to 8 MB of dedicated SDRAM.
The board uses an ESS Solo‑1 PCI audio chipset with 3D surround and positioning capabilities.
