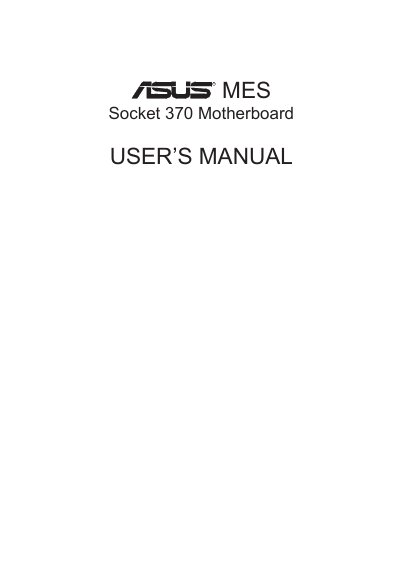

This is the ASUS MES user manual, which introduces the features and characteristics of ASUS MES
This manual covers the ASUS MES Socket 370 motherboard, detailing its features, hardware layout, BIOS configuration, and bundled software. It includes a checklist of items, safety notices, and contact information for ASUS support.
The document walks the user through hardware installation (CPU, memory, expansion cards, power), BIOS setup options, driver installation, and optional components such as onboard audio, VGA memory, and Wake‑On‑LAN. An appendix provides specifications for the optional ASUS PCI‑L101 Fast Ethernet card.
| Supported CPU | Intel Celeron (Socket 370) |
|---|---|
| Graphics Controller | SiS 620 AGPset with built‑in 6326 AGP 2X controller |
| Maximum Memory | 768 MB (three DIMM sockets) |
| Expansion Slots | 5 × 32‑bit PCI, 2 × 16‑bit ISA |
| I/O Ports | 2 UART serial ports, 1 parallel port |
The board supports Intel’s Celeron processor designed for the Socket 370.
It can accommodate up to 768 MB of SDRAM across three DIMM sockets.
The motherboard provides five 32‑bit PCI slots and two 16‑bit ISA slots.
It uses a SiS 620 AGPset with an integrated 6326 AGP 2X graphics controller.
