This document describes the features and characteristics of the instrumentation for industrial process control, flow measurement, gas and liquid analysis, and environmental applications designed and manufactured by ABB.

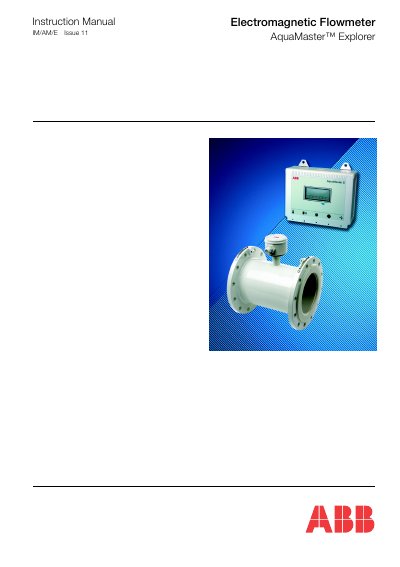

This manual gives end‑user details for the AquaMaster Explorer series of electromagnetic flowmeters, covering safety symbols, hazardous area precautions and general handling. It emphasizes that installation, operation, maintenance and servicing must be performed by trained personnel and in accordance with the safety requirements described.
The document includes sections on mechanical and electrical installation, start‑up procedures, battery handling, wiring diagrams, I/O connections, and specifications. Appendices address GSM‑equipped units and hazardous area protection, and the back of the manual lists ABB’s worldwide support contacts.
| Operating temperature range | -20 °C to 80 °C |
|---|---|
| Enclosure rating | IP68 (NEMA 6P) |
The manual lists symbols such as Warning, Caution, Direct current supply only, Alternating current supply only, Protective earth (ground) terminal, and Double insulation.
The equipment is certified to ABB EN ISO 9001:2000 and EN 29001 (ISO 9001) standards.
The device can be installed in environments from –20 °C (–4 °F) up to 80 °C (176 °F).
