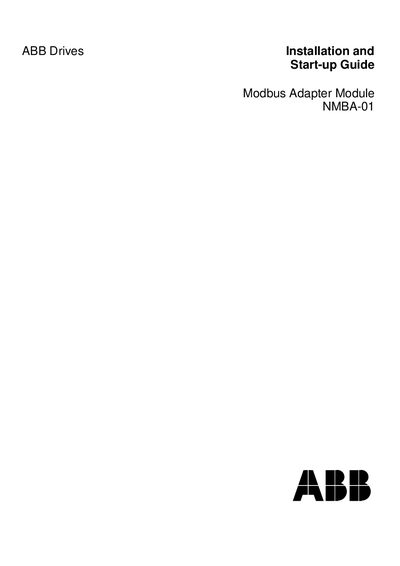

This is the Installation and Start-up Guide for ABB NMBA-01 Modbus Adapter Module.
The Installation and Start-up Guide explains how to safely install, wire, and commission the ABB NMBA-01 Modbus Adapter Module. It begins with safety instructions, then covers mechanical mounting, electrical connections, and earthing requirements.
Subsequent chapters describe programming the Modbus parameters, communication details, fault tracing, technical data, the Modbus protocol, and ambient condition limits, giving technicians a complete reference for bringing the module into service.
All work must be done on a de‑energized drive, wait at least five minutes for the intermediate circuit capacitors to discharge, and verify the drive is discharged with a voltage‑indicating instrument.
The guide includes a specific section on earthing the Modbus cable shields to ensure proper grounding.
Warnings highlight conditions that can cause serious injury or equipment damage if not addressed, while notes provide additional information that requires special attention.
