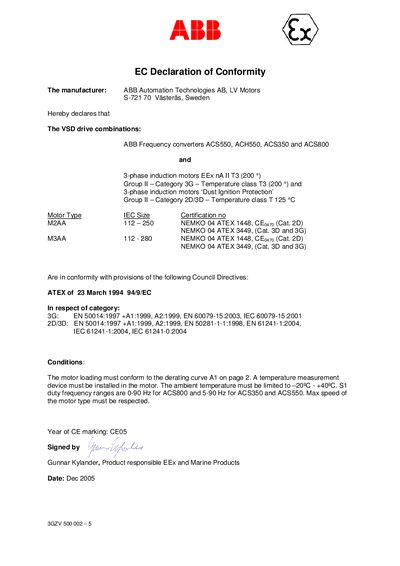

This document is the CE declaration of conformity for ABB ACS550, ACH550, ACS350 and ACS800 frequency converters and M2AA and M3AA three-phase induction motors.
This EC Declaration of Conformity is issued by ABB Automation Technologies AB for its ACS550, ACS350 and ACS800 frequency converters used together with 3‑phase EEx nA II T3 and dust‑ignition‑protected induction motors. The document lists the motor frame sizes, temperature classes and the applicable ATEX categories.
The products are declared compliant with Council Directives ATEX 94/9/EC, EN 50014, EN 60079‑15, EN 50281‑1‑1, EN 61241‑1 and IEC 61241 series. Conditions include a motor loading derating curve, required temperature measurement devices, and ambient temperature limits of –20 °C to +40 °C.
| ACS800 frequency range | 0‑90 Hz |
|---|---|
| ACS350/ACS550 frequency range | 5‑90 Hz |
| Temperature class (Category 3G) | T3 (200 °C) |
| Temperature class (Category 2D/3D) | T125 °C |
| Motor frame size range | 112‑280 mm |
| Ambient temperature limit | ‑20 °C to +40 °C |
The ACS800 can operate from 0 Hz up to 90 Hz.
The ambient temperature must be kept between –20 °C and +40 °C.
