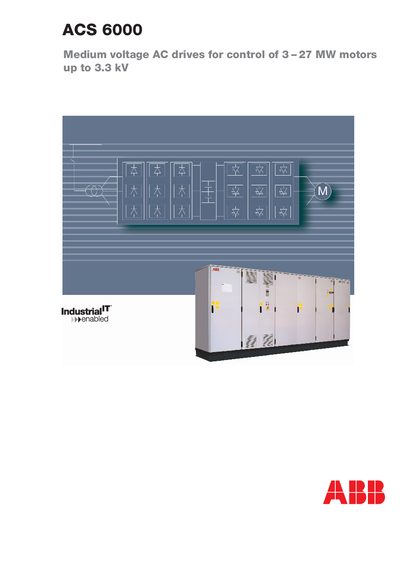

ACS 6000 is a medium voltage drive from ABB. It can control 3-27MW motors and has a maximum voltage of 3.3 kV. The product has high power and reliability.
The ACS 6000 is ABB’s medium‑voltage drive for 3‑27 MW induction, synchronous or permanent‑magnet motors. Its modular design allows single‑motor or multi‑motor configurations with a common DC bus, delivering high efficiency, low noise and fast torque response. The drive uses IGCT power semiconductors and Direct Torque Control for precise speed and torque control.
The manual includes a data sheet with inverter type, rated output voltage, output frequency range, ambient temperature limits, enclosure class, and optional control interfaces such as Profibus, Modbus and DeviceNet. It also lists protective functions, braking options and optional hardware accessories for industrial and marine applications.
| Inverter type | Voltage Source Inverter Neutral-Point Clamped (VSI‑NPC) |
|---|---|
| Motor power range | 3‑27 MW induction or synchronous motors |
| Rated output voltage | Standard: 3.0‑3.3 kV |
| Output frequency | 0 to +75 Hz (Twin 250 Hz) |
| Ambient temperature | +5 °C to 45 °C |
| Enclosure class | Standard: IP32 |
| Control interface (optional) | All common fieldbuses including Profibus, Modbus, DeviceNet, ABB AF100 |
| Braking power (internal resistor) | 0.8 MW |
| Braking power (external resistor) | 2.3 MW |
It uses a Voltage Source Inverter Neutral‑Point Clamped (VSI‑NPC).
The drive uses Integrated Gate Commutated Thyristor (IGCT) devices.
The output frequency can be set from 0 to +75 Hz (Twin 250 Hz).
All common fieldbuses such as Profibus, Modbus, DeviceNet and ABB AF100 can be used.
