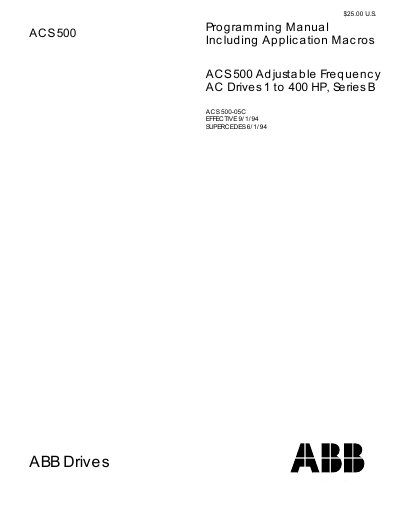

ABB ACS 500 Programming Manual

About this manual

The ABB ACS 500 Programming Manual provides detailed instructions for configuring and programming the ACS 500 adjustable‑frequency AC drives. It includes safety warnings, an overview of the menu system, start‑up data, operating data, and standard application macro programs.

The manual also lists all drive parameters, explains keypad and external control functions, and supplies complete parameter tables and digital‑input programming references for technicians and engineers.

What's inside

• Introduction
• Overview of ACS 500 Programming
• Start‑up Data
• Control Operation
• Standard Application Macro Programs
• Parameters
• Appendix A – Complete Parameter Settings
• Appendix B – Programming Digital Inputs

Specifications

Frequently asked questions

What safety warnings are shown in the manual?

Dangerous voltage warnings and general warnings are indicated by specific symbols throughout the manual.

How many languages does the drive’s control panel display support?

The display supports nine languages: English, German, Italian, Spanish, Dutch, French, Danish, Finnish, and Swedish.

Who should perform the electrical installation of the ACS 500?

Only a qualified electrician should carry out the electrical installation.

Where can the complete list of ACS 500 parameters be found?

Appendix A contains a table with all ACS 500 parameter settings.
