This ABB Drives User Manual introduces the use of ACS 501 drives, including safety instructions, installation and wiring instructions, basic operations, troubleshooting, etc.

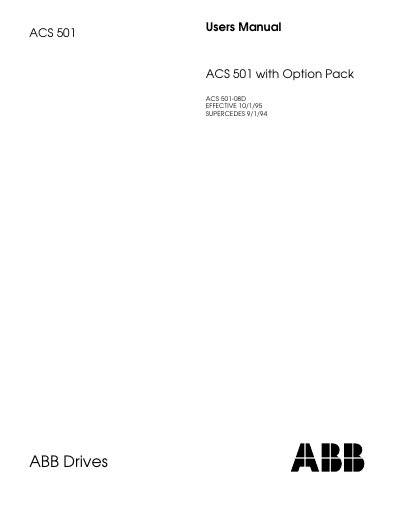

This manual covers the ABB ACS 501 adjustable‑frequency drive equipped with the Option Pack (model ACS 501‑08D). It begins with safety warnings, including dangerous voltage and ESD precautions, and defines the intended audience and document conventions.
Subsequent chapters describe the drive’s features, detailed installation planning, wiring, mechanical mounting, start‑up data parameters, keypad and external control tests, as well as the full set of Option Pack parameter settings. The index at the end helps locate specific topics quickly.
| DC bus voltage level | 1.35 × VIN |
|---|
Only a qualified electrician should carry out the electrical installation.
The warranty period is 12 months, up to a maximum of 18 months from the date of delivery.
