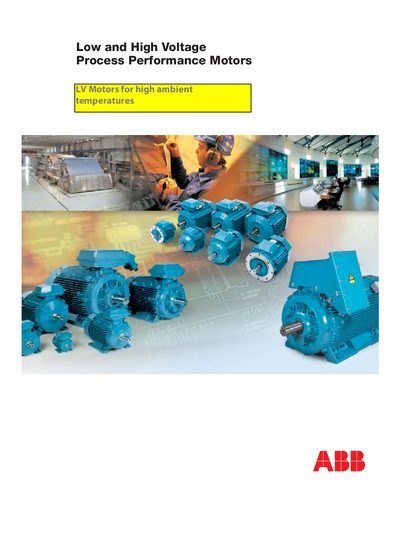

ABB low and high voltage process performance motors, suitable for operation in harsh environments, with high quality and reliability, and a possible operating life of over 30 years.
The ABB Process Performance Motors series includes low‑ and high‑voltage induction motors designed for demanding process‑industry applications. The catalogue covers sizes from 71 mm to 450 mm and power ratings from 0.25 kW to 1000 kW, with options for cast‑iron, aluminum and premium‑efficiency constructions.
Key technical sections describe general information, mounting arrangements (foot‑mounted, flange‑mounted, small and large flanges), cooling methods, insulation classes, IP and IK protection levels, and compliance with IEC/EN standards. Contact information for ABB sales offices worldwide is also provided.
| Size range | 71 mm to 450 mm |
|---|---|
| Power rating | 0.25 kW to 1000 kW |
| Insulation class | Class F (155 °C) |
| Maximum temperature rise | 105 K |
Cooling methods include free circulation (open circuit) and frame surface cooling, with primary coolant air and secondary coolant air or water.
The motors use a Class F insulation system with a temperature class of 155 °C (and Class B at 130 °C).
More information is available at the ABB Motors & Drives website: www.abb.com/motors&drives.
