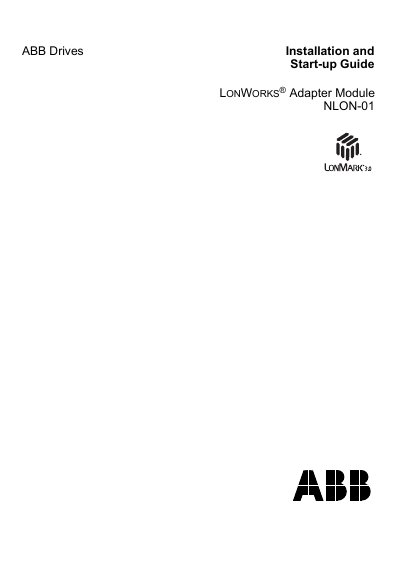

This is an installation and start-up guide for ABB Drives NLON-01 LONWORKS® Adapter Module
The Installation and Start-up Guide is intended for engineers and technicians who install, commission, and operate the NLON-01 LONWORKS® Adapter Module with an ABB drive. It includes safety instructions, mechanical mounting, electrical wiring, programming, and fault‑tracing procedures.
The document is organized into chapters covering an introduction, system overview, mechanical and electrical installation, programming, communication, fault tracing, and appendices with network variables, technical data, and ambient condition specifications.
| Enclosure dimensions | 100 × 22.5 × 115 mm (H×W×D) |
|---|---|
| IP protection rating | IP20 |
| Current consumption | 30 mA at 24 V d.c. |
| Operating temperature range | 0 to +50 °C |
| Operating relative humidity | 5 to 95 % (no condensation) |
| Installation altitude limit | 0 to 2000 m above sea level |
| Vibration limit (operating) | Max 0.3 mm (2 to 9 Hz) |
| Shock limit (operating) | Max 70 m/s², 22 ms |
| Storage temperature range | -40 to +70 °C |
| Storage relative humidity | Less than 95 % (no condensation) |
The module can operate in air temperatures from 0 to +50 °C.
The module consumes 30 mA at 24 V d.c.
The enclosure has an IP20 rating.
