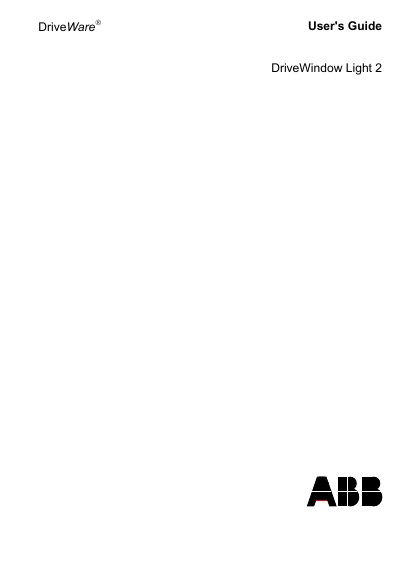

DriveWindow Light 2 User's Guide, introduces the function and usage of the software
DriveWindow Light 2 is a Windows‑based application that provides start‑up, parameter editing, monitoring, and diagnostic functions for ABB low‑voltage AC drives such as the ACS and DCS series. The guide describes how to install the software, connect drives via serial or RS‑485 adapters, and use the various panels for online and offline operation.
The manual is organized into chapters covering an introduction, system requirements, installation steps, drive status display, parameter management, control panel functions, monitoring tools, settings configuration, and a detailed error‑message reference. Each section includes screenshots, tables, and step‑by‑step instructions to help users operate the software efficiently.
| Processor | Pentium 133 MHz |
|---|---|
| Operating System | Windows NT 4.0 (SP6), Windows 2000, Windows XP, Windows Vista, Windows 7 |
| Display | 1024 × 768, 256 colors |
| System Memory (RAM) | 64 MB |
| Hard Disk Space | 80 MB |
The software requires at least a Pentium 133 MHz processor, Windows NT 4.0 (SP6) or later, a 1024 × 768 display with 256 colors, 64 MB of RAM, and 80 MB of free hard‑disk space.
Use the Backup function to upload parameters from the drive directly to a PC file; the file can later be restored with the Restore operation.
