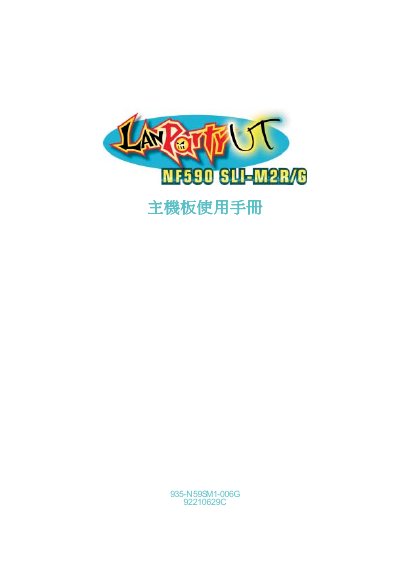

Mainboard User Manual, introduce the features and characteristics of the product
The guide provides step‑by‑step instructions for installing the motherboard, connecting power, CPU, memory, storage and peripheral devices. It includes detailed sections on hardware installation, BIOS configuration, software drivers, and special technologies such as Cool'n'Quiet, RAID and SLI.
Safety precautions, static‑prevention measures, system specifications, and a comprehensive troubleshooting checklist are also included to help users resolve common issues such as no video, power problems, and peripheral failures. This manual is written in Chinese.
| CPU Socket | AM2 (AMD Athlon 64 FX / Athlon 64 X2 / Athlon 64) |
|---|---|
| Chipset | NVIDIA nForce 590 SLI MCP (Northbridge C51XE, Southbridge MCP55PXE) |
| PCI Express x16 Slots | 2 (full‑speed x16 in SLI or single‑VGA mode) |
| PCI Express x1 Slot | 1 |
| PCI Slots | 3 |
| SATA Ports | 6 (four data, two power) |
| Network Controller | Dual Vitesse VSC8601 Gigabit PHY |
| USB Ports | 6 (USB2.0/1.0) |
The board works with AMD Athlon 64 FX, Athlon 64 X2 and Athlon 64 processors that use an AM2 socket.
