This manual is a user manual for VIA KT333A/K8T333A+ motherboard, which introduces the functions and features of the motherboard, as well as the installation and use methods.

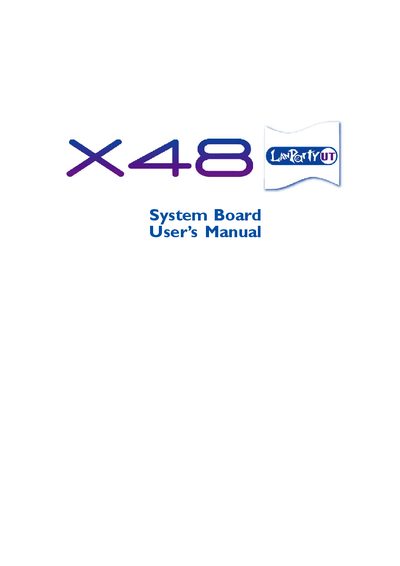

This manual covers everything needed to install and operate a VIA X48 system board. It begins with safety warnings, static‑electricity precautions, and a list of items included in the package. The introduction explains the board’s layout, supported CPUs, memory types, and key features such as the Intel X48 Express chipset, ATI CrossFire support, and Bernstein audio module.
Subsequent chapters guide you through hardware installation, BIOS configuration, RAID setup, and supported software. Appendices provide error‑message references and a detailed troubleshooting guide for common issues like power problems, display errors, and peripheral failures.
| CPU Socket | LGA 775 |
|---|---|
| Chipset | Intel X48 Express |
| Audio Codec | Realtek ALC885 8‑channel HD Audio |
| LAN Controllers | Marvell 88E8052 and 88E8053 Gigabit LAN |
The board has two PCI Express Gen 2 x16 slots.
The module uses a Realtek ALC885 8‑channel High Definition Audio CODEC.
