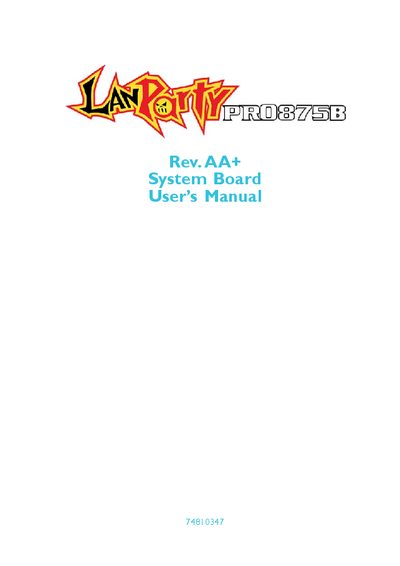

This manual provides detailed instructions on the installation, use and maintenance of the Rev. AA+ System Board, including board specifications, installation instructions, firmware upgrade, device installation, system configuration and troubleshooting.
This manual covers safety precautions, hardware installation steps, BIOS configuration, and driver installation for the LANParty PRO875B motherboard. It includes detailed information on the system board layout, supported processors, memory types, and expansion slots.
Additional sections provide appendices on enabling Hyper‑Threading, CPU fan protection, error messages, and troubleshooting checklists, helping users resolve common issues and optimize system performance.
| CPU Socket | Socket 478 |
|---|---|
| Supported Processors | Intel Pentium 4 (800 MHz/533 MHz FSB), Pentium 4 Northwood (533 MHz/400 MHz), Celeron Northwood (400 MHz) |
| Maximum Memory | Up to 4 GB system memory |
| Memory Interface | Dual channel (128‑bit wide), each channel supports 2 DIMM sockets |
| Memory Types | PC2100/PC2700/PC3200 (DDR266/DDR333/DDR400), ECC/non‑ECC, unbuffered DIMMs |
| Expansion Slots | 1 AGP slot, 5 PCI slots |
| Chipset | Intel 875P chipset, Intel 82875P MCH, Intel 82801ER I/O controller |
Check the cable connections first, as a faulty cable can cause long formatting times; large‑capacity drives also take longer to format.
Refer to Appendix A in the manual, which provides step‑by‑step instructions for enabling Hyper‑Threading.
Set the "RAID Device Control" field in the Genie BIOS Setting submenu of the Award BIOS to Disabled.
