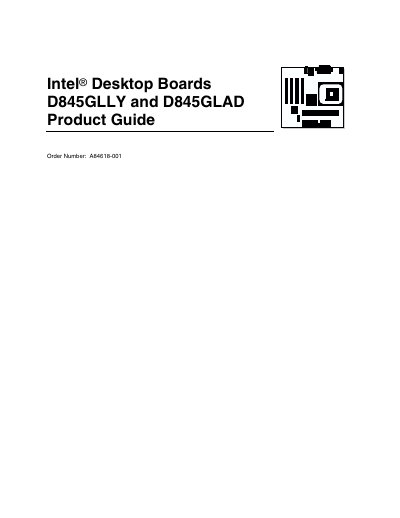

Introduces the features and characteristics of Intel® Desktop Boards D845GLLY and D845GLAD
This guide provides a comprehensive overview of the Intel D845GLLY and D845GLAD desktop boards, including their microATX form factor, supported processors, memory configurations, chipset details, and peripheral interfaces. It also contains step‑by‑step instructions for installing components, updating the BIOS, and configuring the BIOS setup program.
In addition to hardware specifications, the document includes regulatory compliance information, safety regulations, and certification markings required for proper integration into a chassis. The guide is intended for system integrators, technicians, and end users who need detailed technical and installation data for these Intel motherboards.
| Form factor | microATX (9.2" x 8.2") |
|---|---|
| Processor support | Intel Pentium 4 or Celeron, 400 MHz FSB |
| Memory slots | 2 DIMM sockets, up to 2 GB total |
| Memory type (GLAD) | 184‑pin, 2.5 V, DDR266/200 MHz SDRAM |
| Chipset | Intel 845GL (82845 GMCH, 82801DB ICH4) |
| USB ports | Up to four USB 2.0 ports (2 rear, 2 front) |
| Optional LAN | Intel 82562ET 10/100 Mbit/sec |
| Power supply requirement | ATX12V or SFX‑12V compliant |
The boards require an ATX12V or SFX‑12V compliant power supply.
The board provides up to four USB 2.0 ports – two on the back panel and two on the front panel header.
Both boards use a microATX form factor measuring 9.2 inches by 8.2 inches.
