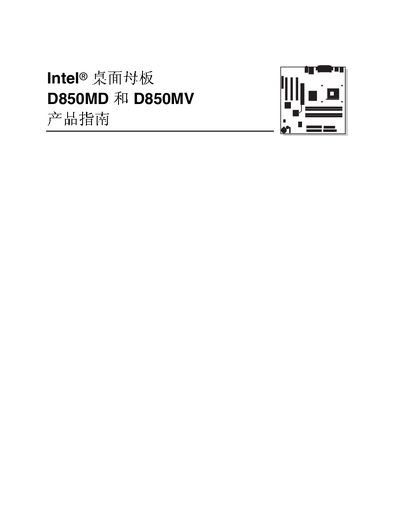

This document is a manual for Intel D850MD D850MV products, describing their features and characteristics.
The guide provides an overview of the D850MD and D850MV motherboards, including their form factors, supported processors, memory types, and integrated components such as LAN and audio codecs. It also outlines compliance information, BIOS update procedures, and hardware configuration options.
Additional sections cover installation and replacement of motherboard components, BIOS setup menus, AGP and IDE connections, power management, and EMC compliance requirements, helping users select and configure the appropriate motherboard for their system. This manual is written in Chinese.
| Form factor (D850MD) | microATX 9.6" x 9.6" |
|---|---|
| Form factor (D850MV) | ATX 9.6" x 12" |
| Supported processor | Intel Pentium 4 |
| Front Side Bus | 400 MHz |
| Memory type | 168‑pin Direct Rambus RIMM |
| Maximum memory | up to 2 GB |
| Chipset | Intel 850 |
| LAN controller | Intel 82562ET 10/100 Mbit |
| AGP support | 1.5 V 4X or 2X |
| USB ports | up to seven |
The D850MD uses a microATX form factor measuring 9.6 inches by 9.6 inches.
Both the D850MD and D850MV support up to approximately 2 GB of RAM.
They include an Intel 82562ET 10/100 Mbit Ethernet controller.
The boards support 1.5 V 4X and 2X AGP slots.
