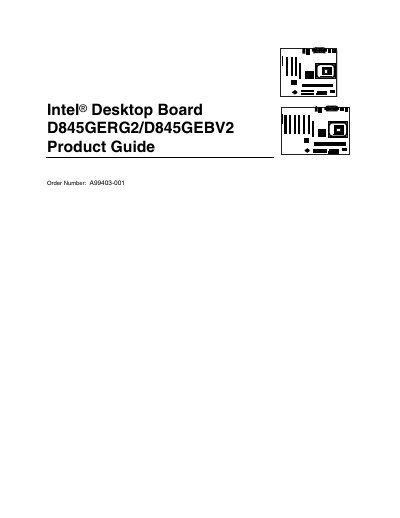

Intel® Desktop Board D845GERG2/D845GEBV2 Product Guide is the official product user manual released by Intel.
This guide describes the Intel D845GERG2/D845GEBV2 desktop board, a MicroATX/ATX motherboard that supports Pentium 4 and Celeron processors and up to 2 GB of DDR SDRAM memory. It includes details on chipset components, expansion slots, USB ports, audio and LAN subsystems, and power‑management features.
The document covers hardware installation, BIOS configuration, memory and processor installation, BIOS updates, safety and EMC regulations, and certification markings. It also provides troubleshooting tips for interference and a comprehensive list of specifications for system integrators and end users.
| Form factor (D845GERG2) | MicroATX 9.6" x 8.2" |
|---|---|
| Form factor (D845GEBV2) | ATX 12.0" x 8.2" |
| Supported processors | Pentium 4 (533 MHz/400 MHz FSB) and Celeron (400 MHz FSB) in mPGA‑478 socket |
| Memory capacity | Up to 2 GB DDR SDRAM |
| USB ports | Up to six USB 2.0 ports (four back, two front) |
| Expansion slots (D845GEBV2) | Six PCI, one AGP, optional CNR |
Reorient or relocate the receiving antenna, increase the separation between the equipment and the receiver, connect the equipment to a different circuit, or consult a qualified radio/TV technician.
The board carries UL, FCC Class B, CE, ACA C‑Tick, and Korean MIC certifications, along with the corresponding product marking codes.
The board provides up to six USB 2.0 ports, with four on the back panel and two on the front panel header.
