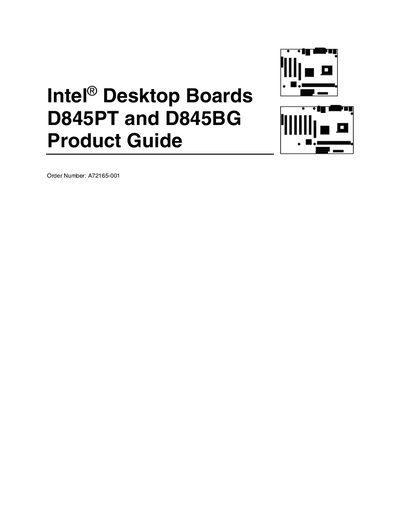

Intel D845PT/D845BG Desktop Board Product Guide

About this manual

This guide covers the features of the Intel D845PT and D845BG desktop boards, including the Intel® 845 chipset, memory controller hub, and I/O controller hub. It lists supported processors, memory types, expansion slots, and connector layouts.

The document also provides detailed installation and replacement procedures for processors, memory modules, AGP cards, and the battery, as well as BIOS update methods, setup program navigation, and compliance statements for FCC and Canadian regulations.

What's inside

• Desktop Board Features
• Installing and Replacing Desktop Board Components
• BIOS Setup Program
• Updating the BIOS
• Regulatory Compliance
• Safety and EMC Regulations
• Power Management Features
• Error Messages and Indicators

Specifications

Frequently asked questions

How can I update the BIOS on these boards?

You can update the BIOS using either the Intel® Express BIOS Update Utility or the Intel® Flash Memory Update Utility as described in the "Updating the BIOS" sections.

What FCC compliance statements apply to these boards?

The document states the device complies with Part 15 of the FCC Rules for a Class B digital device and lists steps to mitigate interference.

Where can I find the BIOS configuration jumper settings?

The location of the BIOS configuration jumper block is shown in the "Setting the BIOS Configuration Jumper Block" section.
