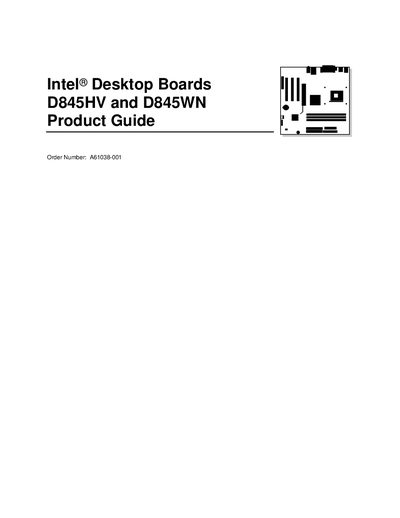

Intel® Desktop Boards D845HV and D845WN Product Guide
The Intel D845HV and D845WN desktop boards are microATX/ATX motherboards designed for Intel Pentium 4 processors. The guide describes their major features, supported components, and system requirements.
It includes detailed installation instructions, BIOS configuration, power‑management options, hardware‑monitoring capabilities, and extensive regulatory and EMC compliance information to help integrators and end‑users correctly install and operate the boards.
| Form factor (D845HV) | microATX 9.6" x 9.6" |
|---|---|
| Form factor (D845WN) | ATX 12" x 9.6" |
| Supported processor | Intel® Pentium® 4 in mPGA‑478 socket |
| Memory slots | Three SDRAM DIMM sockets, up to 3.0 GB total |
| Optional LAN controller | Intel® 82562ET 10/100 Mbit/sec Platform LAN Connect |
| AGP connector | Supports 1.5 V 4X and 2X AGP cards |
| USB ports | Up to seven Universal Serial Bus ports |
| IDE interfaces | Two IDE interfaces with Ultra DMA‑33 and ATA‑66/100 support |
Both boards support an Intel® Pentium® 4 processor installed in an mPGA‑478 socket.
Each board provides three SDRAM DIMM sockets and can support up to 3.0 GB of system memory.
An optional Intel® 82562ET 10/100 Mbit/sec Platform LAN Connect (PLC) device is provided.
The D845HV board uses a microATX form factor measuring 9.6 inches by 9.6 inches.
