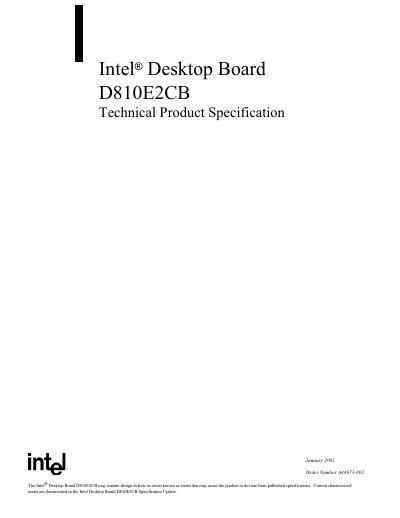

Intel D810E2CB Desktop Board Technical Product Specification

About this manual

The Intel D810E2CB Technical Product Specification provides detailed information on the board layout, component list, connectors, power and environmental requirements, and BIOS functionality. It is intended for vendors, system integrators, engineers and technicians who need in‑depth technical data.

The document includes a full hardware description, block diagrams, BIOS setup menus, error and beep codes, as well as mechanical, electrical and thermal considerations for the FlexATX form‑factor board.

What's inside

• Product Description
• Technical Reference
• BIOS Features
• BIOS Setup Program
• Error Messages and Beep Codes
• Mechanical Considerations
• Electrical Considerations
• Thermal Considerations
• Regulatory Compliance

Specifications

Frequently asked questions

What is the BIOS identifier for the Intel D810E2CB board?

The BIOS identifier is CB81010A.86A.

Where can errata for the D810E2CB board be obtained?

Current errata are documented in the Intel Desktop Board D810E2CB Specification Update and can be requested from Intel sales or distributors.

What form factor does the D810E2CB board use?

The board uses the FlexATX form factor.

What is the speaker impedance on the D810E2CB board?

The onboard speaker has an impedance of 47 Ω.
