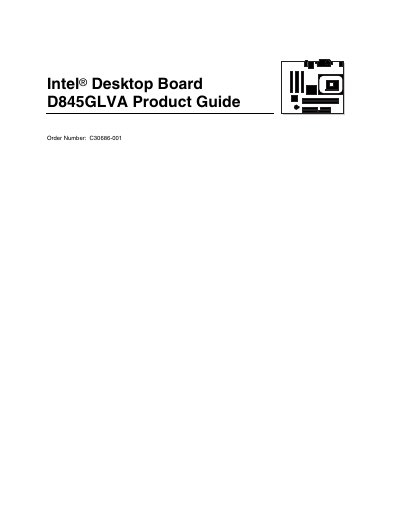

This document is the Intel® Desktop Board D845GLVA Product Guide, which describes the features and characteristics of the product.
This guide details the features of the Intel D845GLVA desktop board, including its MicroATX form factor, supported Intel Pentium 4 and Celeron processors, up to 2 GB DDR SDRAM, and the Intel 845GL chipset with integrated graphics, audio, and LAN. It also describes the board’s expansion capabilities, such as three PCI slots and up to four USB 2.0 ports.
Installation instructions cover mounting the board, connecting power supplies (ATX12V or SFX‑12V), installing processors, memory modules, and peripherals. The BIOS setup program, power‑management options, and regulatory compliance requirements are explained, along with safety precautions for integrators.
| Form factor | MicroATX 9.2" x 8.2" |
|---|---|
| Memory capacity | Up to 2 GB DDR SDRAM (DDR200/266, 2.5 V) |
| USB ports | Up to four USB 2.0 ports |
| PCI slots | Three PCI slots |
| LAN controller | Intel 82562ET 10/100 Mbit Ethernet |
| Power supply requirement | ATX12V or SFX‑12V compliant power supply |
The board requires an ATX12V or SFX‑12V compliant power supply.
It supports up to four USB 2.0 ports.
The board can accommodate up to 2 GB of DDR SDRAM.
