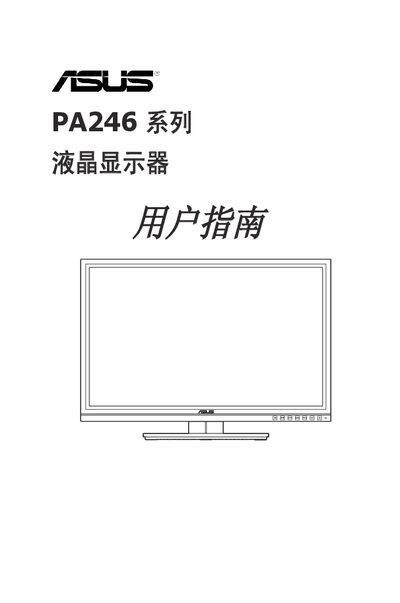

ASUS PA246 Series LCD Monitor User Manual

PA246 Series LCD Monitor User Guide, introduces product features and characteristics, including installation, connection, and use

Brand: ASUS
Category: Monitor
Document type: User Manual
Language: Chinese
Pages: 25
File format: PDF
File size: 2.9 MB
Published: 22 March, 2012
Updated: 30 September, 2023
MD5 checksum: 24B1DEB876E18AA4D9AEAF07E07E08DF
PDF: ASUS PA246 Series LCD Monitor User Manual PDF

About this manual

This manual introduces the ASUS PA246 series LCD monitor, covering safety information, unpacking, and the front and rear overview of the device. It explains the QuickFit function, VESA mounting, adjustment procedures, and how to connect power and video cables.

The document also details the on‑screen display (OSD) menu, provides a specifications summary, lists supported operating modes, and includes a troubleshooting section with common issues and their solutions. This manual is written in Chinese.

What's inside

Safety Information
Product Introduction
Front Overview
Rear Overview
QuickFit Function
VESA Mounting
Adjusting the Monitor
Connecting Cables
Power On/Off
OSD Menu

Specifications

Resolution	1920x1080
Horizontal Frequency	67.5 kHz
Vertical Frequency	60.00 Hz
Resolution	1280x1024
Horizontal Frequency	63.98 kHz
Vertical Frequency	60.02 Hz

Frequently asked questions

How can I automatically adjust a misaligned image?

Press and hold the QuickFit (or the designated button) for 2‑4 seconds to auto‑adjust the image (VGA mode only).

What should I do if the screen is too bright or too dark?

Adjust the brightness and contrast settings through the OSD menu.

Why is there no sound or low volume from the monitor?

Ensure the HDMI cable is properly connected and adjust the volume settings on both the monitor and the connected HDMI device.
