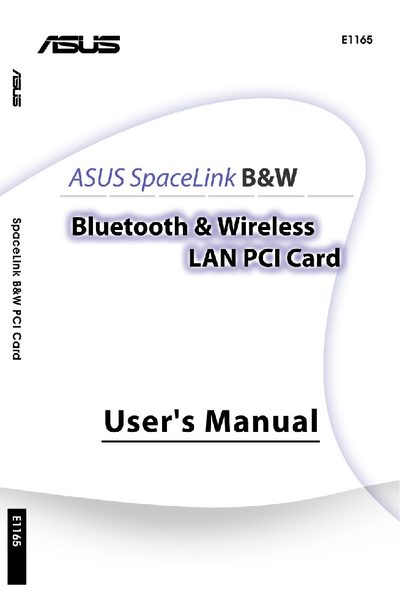

ASUS spacelink B W PC1 Card WL-230 Manual

The user manual of SpaceLink™ B&W PCI Card WL-230 introduces the features and characteristics of ASUS SpaceLink B&W PCI Card.

Brand: ASUS
Category: Other network devices
Document type: User Manual
Language: English
Pages: 111
File format: PDF
File size: 2.8 MB
Published: 22 March, 2012
Updated: 29 September, 2023
MD5 checksum: 6E266881C472E7013DBA45B6C8658AA9
PDF: ASUS spacelink B W PC1 Card WL-230 Manual PDF

About this manual

The ASUS SpaceLink B&W PCI Card (model WL-230) is a PCI‑compliant wireless network interface card that supports IEEE 802.11b, IEEE 802.11a and Bluetooth connectivity. It offers data rates up to 11 Mbps (108 Mbps turbo) on 2.4 GHz and up to 54 Mbps on 5 GHz.

This manual covers product overview, system requirements, installation of the card and its drivers, configuration utilities for Bluetooth and Wireless LAN, safety and regulatory information, and troubleshooting guidance.

What's inside

Introduction
Installation
Bluetooth Software
Wireless LAN Settings
Safety Information
Regulatory Information
Specifications

Specifications

Maximum 802.11b data rate	11 Mbps (108 Mbps turbo mode)
Maximum 802.11a data rate	54 Mbps
Operating frequency (802.11b)	2.4 GHz ISM band
PCI compliance	PCI‑compliant wireless network interface card
Bluetooth support	Yes

Frequently asked questions

What wireless standards does the SpaceLink B&W PCI Card support?

It supports IEEE 802.11b, IEEE 802.11a, and Bluetooth connectivity.

What is the recommended minimum distance between the antenna and the user for RF safety?

The manual recommends keeping at least 20 cm (or 2.5 em) between the antenna and the body during operation.

Where can I find ASUS technical support contact numbers for the PCI card?

Technical support numbers are listed for Asia‑Pacific, America, and Germany, e.g., +886‑2‑2890‑7121 (English) for MB/Others in Asia‑Pacific.
