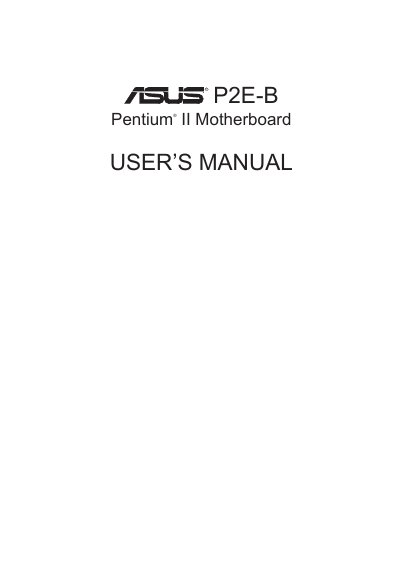

This manual introduces the features and usage of ASUS P2E-B motherboard.
This manual covers everything needed to set up and operate the ASUS P2E-B motherboard, including a checklist of items, installation steps, BIOS configuration, and support software. It also contains regulatory information such as FCC and Canadian compliance statements.
The document describes the motherboard’s key features—processor support, memory capacity, expansion slots, power options, and optional LAN card—along with detailed BIOS menus and power‑management settings.
| Supported CPU | Intel Pentium II 233 MHz – 333 MHz |
|---|---|
| AGP Set | Intel 440EX |
| Memory Slots | 2 DIMM sockets, up to 256 MB total |
| Power Connectors | AT and ATX connectors |
| Expansion Slots | 2 × 16‑bit ISA, 3 × 32‑bit PCI |
| Wake‑on‑LAN Support | Optional ASUS PCI‑L101 Fast Ethernet card |
| PIO Modes | 3 and 4 |
| Boot Support | IDE CD‑ROM or SCSI device |
It supports Intel Pentium II processors ranging from 233 MHz to 333 MHz.
The board has two DIMM sockets and can accommodate up to 256 MB of 168‑pin 3.3 V SDRAM/EDO memory.
It provides two 16‑bit ISA slots and three 32‑bit PCI slots.
Yes, Wake‑on‑LAN is supported via the optional ASUS PCI‑L101 Fast Ethernet card.
