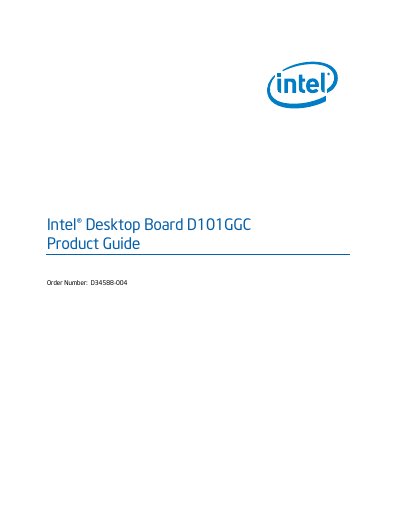

Intel® Desktop Board D101GGC Product Guide
This guide describes the main features of the Intel D101GGC desktop board, including its MicroATX form factor, LGA775 processor support, up to 2 GB DDR memory, ATI RAIDON XPRESS 200 chipset, and extensive I/O options such as USB 2.0, SATA, and PCI‑Express.
It also contains detailed installation instructions for the board, memory, processors, and peripherals, as well as regulatory compliance statements and certification markings required for global markets. This manual is written in Chinese.
| Form Factor | MicroATX (243.84 mm × 218.44 mm) |
|---|---|
| Processor Socket | LGA775 |
| Maximum Memory | 2 GB DDR SDRAM |
| Chipset | ATI RAIDON XPRESS 200 (Northbridge + IXP 450 Southbridge) |
| USB Ports | Eight USB 2.0 ports (four rear, four via headers) |
| SATA Interfaces | Four Serial ATA (SATA) channels (1.5 Gb/s) |
It uses a MicroATX form factor measuring 243.84 mm × 218.44 mm.
