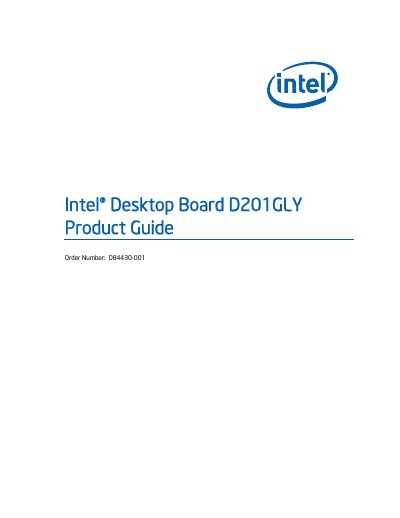

Intel D201GLY Desktop Board Product Guide

This document is the product guide for the Intel® Desktop Board D201GLY. It describes the features and characteristics of the product.

Brand: Intel
Category: Other
Document type: User Manual
Language: English
Pages: 56
File format: PDF
File size: 6 MB
Published: 22 March, 2012
Updated: 28 September, 2023
Model: D201GLY
MD5 checksum: 5AD70E07AA23CAAFC834030506613948
PDF: Intel D201GLY Desktop Board Product Guide PDF

About this manual

This Product Guide is intended for technically qualified personnel who need to install, configure, and maintain the Intel D201GLY desktop board. It covers board layout, component installation, BIOS updates, and safety and EMC regulations.

The document includes a feature summary, detailed installation instructions, BIOS configuration, supported operating systems, and a full list of regulatory certifications and product markings required for global markets.

What's inside

Desktop Board Features
Installing and Replacing Desktop Board Components
Updating the BIOS
Regulatory Compliance
Product Certifications
Safety Regulations
Supported Operating Systems

Specifications

Form Factor	Mini-ITX
Processor	Intel Celeron
Maximum System Memory	1 GB DDR2 SDRAM
Chipset	SiS662 (Northbridge) / SiS964L (Southbridge)
USB Ports	Six USB 2.0 ports (2 rear, 4 via headers)
LAN Interface	10/100 Mb/s Ethernet

Frequently asked questions

What operating systems are supported by the Intel D201GLY Desktop Board?

The board supports Microsoft Windows XP Professional, Windows XP Home, and Windows XP Starter Edition.

How many USB 2.0 ports does the Intel D201GLY Desktop Board provide?

It provides six USB 2.0 ports – two on the back panel and four via internal headers.

What is the maximum amount of system memory the board can handle?

The board supports up to 1 GB of DDR2 SDRAM memory.
