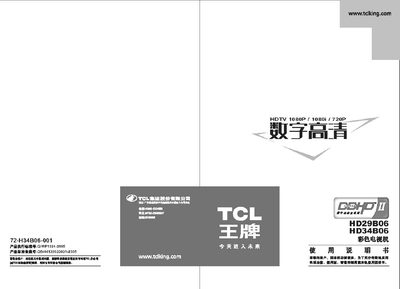

This manual provides detailed instructions for setting up and operating the TCL HD29B06 and HD34B06 color televisions. It covers safety precautions, unpacking, basic operation, system settings, and how to use the TV’s various functions such as channel search, picture adjustment, and HDMI/AV input selection.
The document also includes technical specifications, a diagram of the control panel, troubleshooting tips, and guidance for dealing with interference or signal issues. Users can refer to the fault‑check section for common problems and their resolutions. This manual is written in Chinese.
| Screen size (diagonal) | 29 in (HD29B06) / 34 in (HD34B06) |
|---|---|
| Power consumption | 80 W |
| Working voltage | 180‑250 V 50 Hz |
| Receiving frequency range | 40‑800 MHz |
Press the power button on the main unit; the indicator lamp will light up and the TV will start.
Press the “TV/AV” key on the remote or the TV/AV button on the unit to select the desired input source.
Check all cable connections, adjust the picture mode, and ensure the antenna is properly positioned as described in the fault‑check section.
