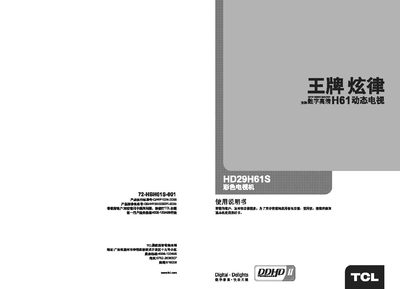

This manual explains how to install and operate the TCL HD29H61S TV, covering safety notices, external diagrams, basic controls, signal input connections, and system settings such as picture geometry and audio adjustments. It also details the supported video formats, input types (HDMI, AV, component), and technical specifications of the unit.
A troubleshooting section helps diagnose picture or sound issues, and provides step‑by‑step guidance for common problems like signal loss or incorrect settings. The document ends with a simple fault‑check checklist and contact information for service support. This manual is written in Chinese.
| Operating voltage range | 150‑250V |
|---|---|
| Power consumption | 180 W |
| Dimensions (W×H×D) | 7B4 × 453 × 561 mm |
| Weight | 43 kg |
| Maximum resolution | 1920 × 1080 |
| HDTV component input | YPbPr |
Press the power button on the main unit; if the TV was previously turned off at the power source, it will enter standby mode.
Select the ‘自动扫兴’ (auto scan) option in the menu and follow the prompts to scan for channels automatically.
Check that all cables are securely connected, verify the power and antenna connections, adjust picture and sound settings, and if the problem persists, contact the local service center.
