Introduces the features of the Altivar 08 series, including product models, environmental adaptability, EMC, etc.

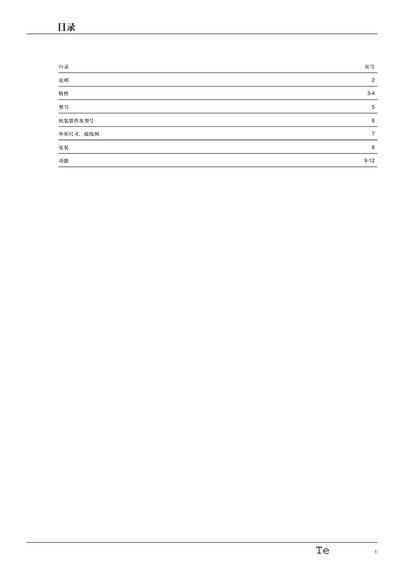

This manual describes the Altivar 08 asynchronous motor frequency converter, covering its features, environmental compliance, and technical specifications such as output frequency range, power ratings, and EMC standards. It includes a table of contents with sections on description, features, model numbers, assembly parts, dimensions, wiring diagrams, installation, and functions.
Installation guidance addresses mounting options, cooling requirements, grounding of motor and control cables, and safety precautions. Functional sections explain speed setting, braking, automatic restart, and protection mechanisms like overload and thermal protection. This manual is written in Chinese.
| Output frequency range | 0.5 – 120 Hz |
|---|---|
| Power rating (single‑phase motor) | 0.18 – 0.75 kW |
| Input voltage | 200 – 240 V, 50/60 Hz |
| IP protection rating | IP20 (HU/PU), IP65 (EU) |
The converter can output frequencies from 0.5 Hz up to 120 Hz.
The HU and PU versions have IP20 protection, while the EU version has IP65.
It accepts a single‑phase input of 200 V to 240 V at 50 Hz or 60 Hz.
Standard models include an EMC filter, but the HU and PU versions can be supplied without it if EMC compliance is not required.
