This document provides information about Altivar 61/71 products, including models, dimensions, and installation dimensions.

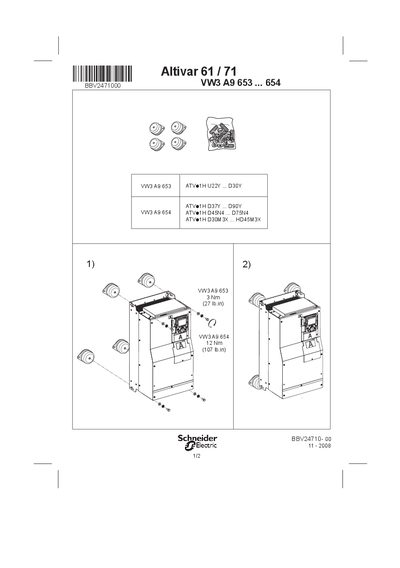

This short manual from Schneider Electric covers the key mechanical specifications of the Altivar VW3 A9 series drives, model 653 and 654. It lists torque capabilities and the overall size of each unit.
The document includes torque values of 3 Nm (27 Ib·in) for the 653 model and 12 Nm (107 Ib·in) for the 654 model, as well as the external dimensions of the drives (56 mm × 98 mm and related measurements).
| Torque (VW3 A9 653) | 3 Nm (27 Ib·in) |
|---|---|
| Torque (VW3 A9 654) | 12 Nm (107 Ib·in) |
| Dimensions (overall) | 56 mm × 98 mm |
The VW3 A9 653 is rated for 3 Nm (27 Ib·in) of torque.
The VW3 A9 654 measures 56 mm by 98 mm.
