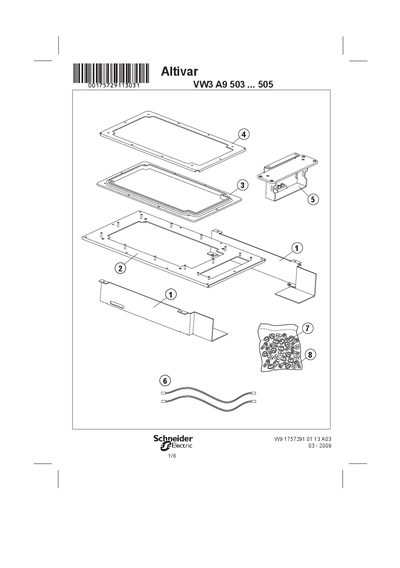

This document provides detailed specifications for Altivar W9 VW3 A9 503 / 504 / 505, including dimensions, weight, etc.
The Altivar VW3 A9 series from Schneider Electric are variable frequency drives designed for precise motor control in industrial applications. This manual covers the three models 503, 504, and 505.
The document provides physical dimensions for each model, such as width, height, and depth, as well as other key mechanical specifications needed for installation and integration. This manual is written in Japanese.
| VW3 A9 503 width (mm) | 215 |
|---|---|
| VW3 A9 504 width (mm) | 250 |
| VW3 A9 505 width (mm) | 270 |
The VW3 A9 504 model has a width of 250 mm.
