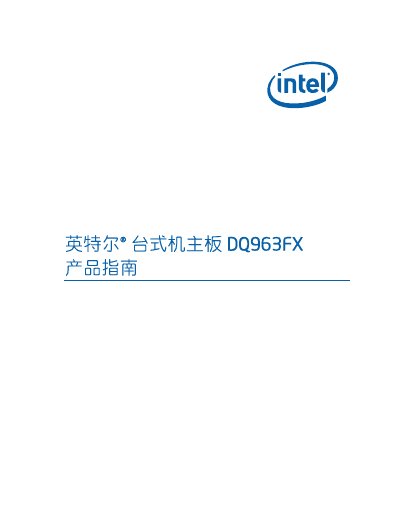

Intel® Desktop Board DQ963FX Product Guide, introduces the features of Intel® Desktop Board DQ963FX product, including revision record, FCC statement, Canadian Department of Communications statement, disclaimer, Desktop Board DQ963FX may contain design defects or errors, and the latest errata sheet etc.
This product guide details the Intel DQ963FX desktop motherboard, covering board layout, supported components, BIOS update procedures, and regulatory compliance. It is intended for qualified technicians and includes safety and EMC guidelines.
The document includes functional overviews, step‑by‑step installation instructions, BIOS configuration, hardware management features, and a full list of certifications and standards the board meets. This manual is written in Chinese.
| Form Factor | ATX (320.04 mm × 243.84 mm) |
|---|---|
| Processor Socket | LGA775 |
| USB Ports | Up to 10 USB 2.0 ports |
| SATA Ports | Four SATA III (3 Gb/s) ports |
| LAN Controller | Intel 82566DC Gigabit Ethernet |
| BIOS Flash | 8 Mbit symmetric flash |
It supports Intel processors that use the LGA775 socket.
The board provides up to ten USB 2.0 ports.
It follows the ATX form factor measuring 320.04 mm by 243.84 mm.
