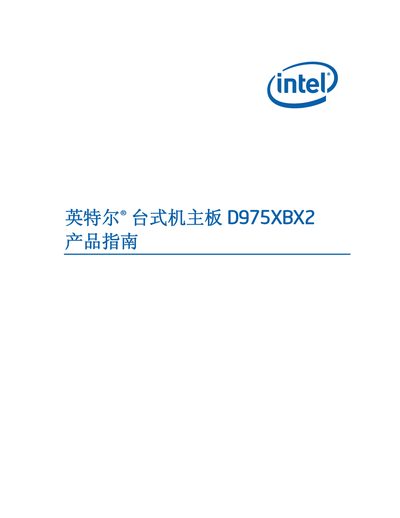

Intel D975XBX2 Desktop Motherboard Product Guide

Intel desktop motherboard D975XBX2 Product Guide, introduces the characteristics and features of the motherboard

Brand: Intel
Category: Motherboard
Document type: User Manual
Language: Chinese
Pages: 78
File format: PDF
File size: 4.8 MB
Published: 21 March, 2012
Updated: 30 September, 2023
Model: D975XBX2
MD5 checksum: BF7C14F4EA4C891AA057616EB53B50CA
PDF: Intel D975XBX2 Desktop Motherboard Product Guide PDF

About this manual

This guide details the Intel D975XBX2 motherboard, covering component layout, installation steps, BIOS configuration, and RAID setup. It is intended for qualified technical personnel working on desktop PCs.

The document also lists safety, EMC, and certification information for FCC, CE, UL and other regional standards, and includes packaging contents and connector pin‑outs. This manual is written in Chinese.

What's inside

Motherboard Features Overview
Installation and Component Replacement
BIOS Setup and Update
RAID Configuration
Error Messages and Indicator Signals
Standards and Compliance
Packaging Contents

Specifications

USB Support	USB 2.0
PCI Express Slot	PCI Express X16
Memory Type	DDR2 DIMM
Supported Operating Systems for RAID	Windows XP, Vista, 2000

Frequently asked questions

What FCC compliance does the D975XBX2 motherboard have?

It complies with FCC Part 15 B‑class digital device limits.

Which operating systems are supported for RAID configuration?

RAID can be configured under Microsoft Windows XP, Windows Vista, or Windows 2000.
