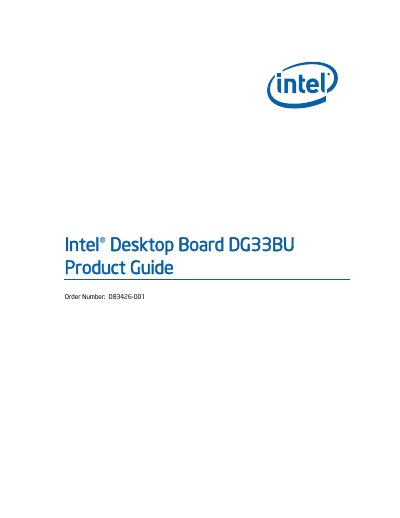

Intel DG33BU Desktop Board Product Guide

Introduce the features and characteristics of Intel® Desktop Board DG33BU product.

Brand: Intel
Document type: User Manual
Language: English
Pages: 75
File format: PDF
File size: 5.9 MB
Published: 21 March, 2012
Updated: 30 September, 2023
Model: DG33BU
MD5 checksum: C423680200B71C793E9D9A379D56AD87
PDF: Intel DG33BU Desktop Board Product Guide PDF

About this manual

This Product Guide is intended for technically qualified personnel who need detailed information on the Intel DG33BU desktop board, including layout, component installation, BIOS updates, and regulatory requirements. It is not aimed at general consumers.

The guide is organized into chapters covering board features, installation and replacement of components, BIOS update methods, error messages, and compliance certifications. It also includes tables of specifications, connector pin‑outs, and safety regulations.

What's inside

Desktop Board Features
Installing and Replacing Desktop Board Components
Updating the BIOS
Error Messages and Indicators
Regulatory Compliance
Hardware Management Features
Power Management Features
Product Certifications

Specifications

Form Factor	microATX
Processor Support	Intel processor, LGA775 package
Memory Capacity	Up to 8 GB DDR2 SDRAM
Chipset	Intel G33 Express
Graphics	Intel GMA 3100
LAN Controller	Intel 82566DC Gigabit Ethernet
USB Ports	12 USB 2.0 ports
SATA Ports	Four SATA 3.0 Gb/s channels

Frequently asked questions

How many USB 2.0 ports does the DG33BU provide?

The DG33BU desktop board provides up to twelve USB 2.0 ports.

What is the form factor of the DG33BU motherboard?

The DG33BU uses a microATX form factor.

What is the maximum memory capacity of the DG33BU board?

It can support up to 8 GB of DDR2 system memory.
