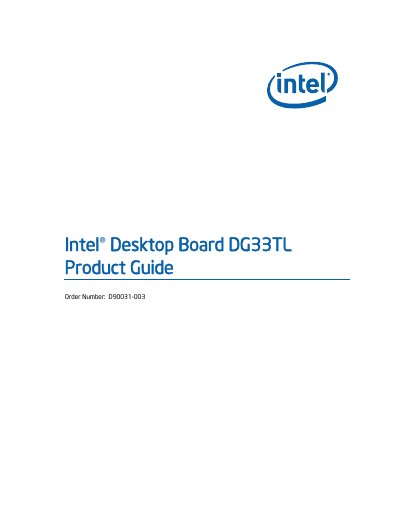

This document is the third version of the Intel® Desktop Board DG33TL Product Guide, which describes the features and characteristics of the product. The document also includes an FCC declaration of conformity and contact information.
This guide covers the features of the Intel DG33TL desktop board, including its microATX form factor, supported processors, memory, chipset, graphics, audio, LAN, and expansion options. It also details installation and replacement procedures for components such as the processor, memory modules, and PCIe cards, as well as BIOS update methods.
Additional sections describe configuring RAID and Intel Rapid Recover Technology, interpreting BIOS error messages and beep codes, and meeting safety and EMC regulatory requirements for various markets.
| Form Factor | microATX |
|---|---|
| Processor Socket | LGA775 |
| Memory Type | DDR2 SDRAM (up to 8 GB) |
| Chipset | Intel® G33 Express |
| Graphics Controller | Intel G33 Express GMCH |
| Audio Subsystem | 8‑channel HD Audio |
| USB Ports | Up to 12 USB 2.0 ports |
| SATA Channels | Six SATA 3.0 Gb/s ports (including one eSATA) |
The DG33TL board uses a microATX form factor.
It supports DDR2 SDRAM DIMMs with a maximum of 8 GB of system memory.
The board provides up to 12 USB 2.0 ports.
