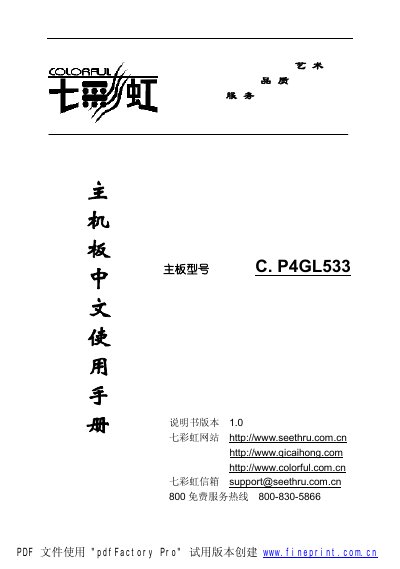

C. P4GL533 motherboard manual, which introduces the motherboard specifications, hardware installation steps, hardware settings, BIOS settings and other content.
The Colorful C.P4GL533 is an ATX‑form factor motherboard that uses the Intel 82845GL (GMCH) paired with Intel 82801DB (ICH4) chipset. It supports Intel Socket 478 Pentium 4 and Celeron processors (Willamette and Northwood cores) with a 400 MHz front‑side bus and up to 2 GB of DDR200/266 memory across two 184‑pin slots.
This manual details the board’s specifications, step‑by‑step hardware installation, BIOS configuration options, Super I/O functions, network and USB interfaces, power‑management features, and a troubleshooting section for common POST error messages. This manual is written in Chinese.
| CPU Socket | Socket 478 |
|---|---|
| Supported CPUs | Pentium 4 Willamette and Northwood cores |
| Front Side Bus | 400 MHz |
| Chipset | Intel 82845GL (GMCH) with Intel 82801DB (ICH4) |
| Memory Slots | 2 DDR 184‑pin 2.5 V slots |
| Maximum Memory | 2 GB DDR200/266 |
| Integrated Audio | AC’97 Codec controller |
| USB Ports | 6 USB2.0 ports |
| Network Interface | RealTek RTL81XX 10/100 Mbps Ethernet |
| Expansion Slots | 3 PCI slots |
| Power Supply Connector | Dedicated P4 power connector |
| Power Management | Supports ACPI 1.0B and APM 1.2 |
It supports Intel Pentium 4 and Celeron 4 processors with Willamette or Northwood cores using the Socket 478 socket.
The board has two DDR 184‑pin slots and can hold up to 2 GB of DDR200/266 memory.
The motherboard includes six USB 2.0 ports.
A RealTek RTL81XX series controller provides 10/100 Mbps Ethernet connectivity.
